LC Roll-Over Uniboot Connector

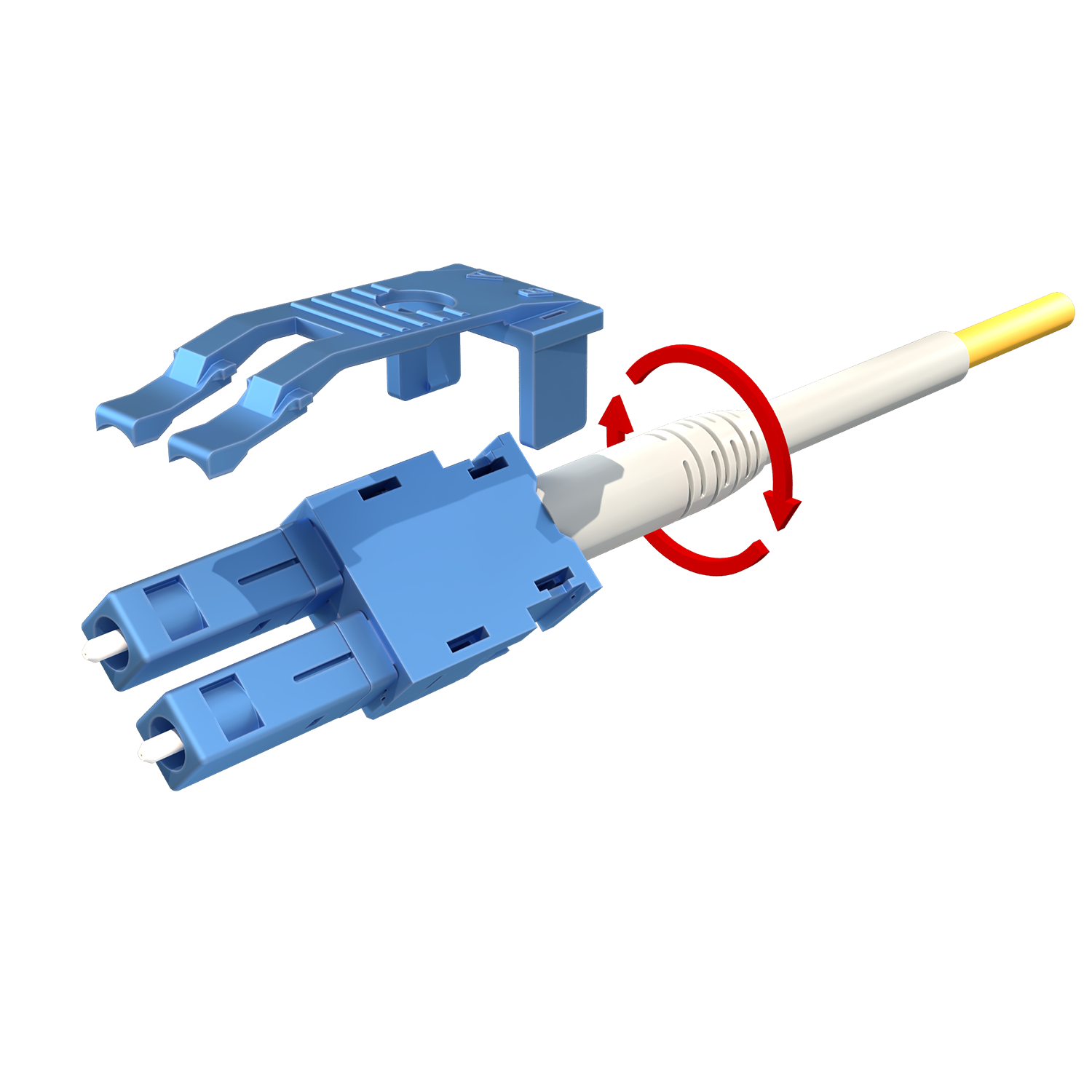

The SANWA LC Roll-Over Uniboot Connector provides the industry’s simplest, fastest way to reverse the fiber channel polarity. There is no need for a tool or delicate handwork, and no fiber is exposed during the process—the simplest, fastest, and safest polarity reversible connector with field usability in mind.
Characteristics
- IEC61754-20, TIA/EIA, GR-326-CORE compliant
- RoHS and REACH compliant
- UL94V-0 flammability grade
- Available for 2.0mm, 3.0mm, and 5.0mm cable type
- SM, MM types available
Additional information
| Ferrule ID | SM 125.5um, MM 127um |
|---|---|
| Housing Color | Blue, Aqua, Heather Violet, Lime Green |
| Cable Size | 2.0mm, 3.0mm, 5.0mm |
| Boot Color | White |
