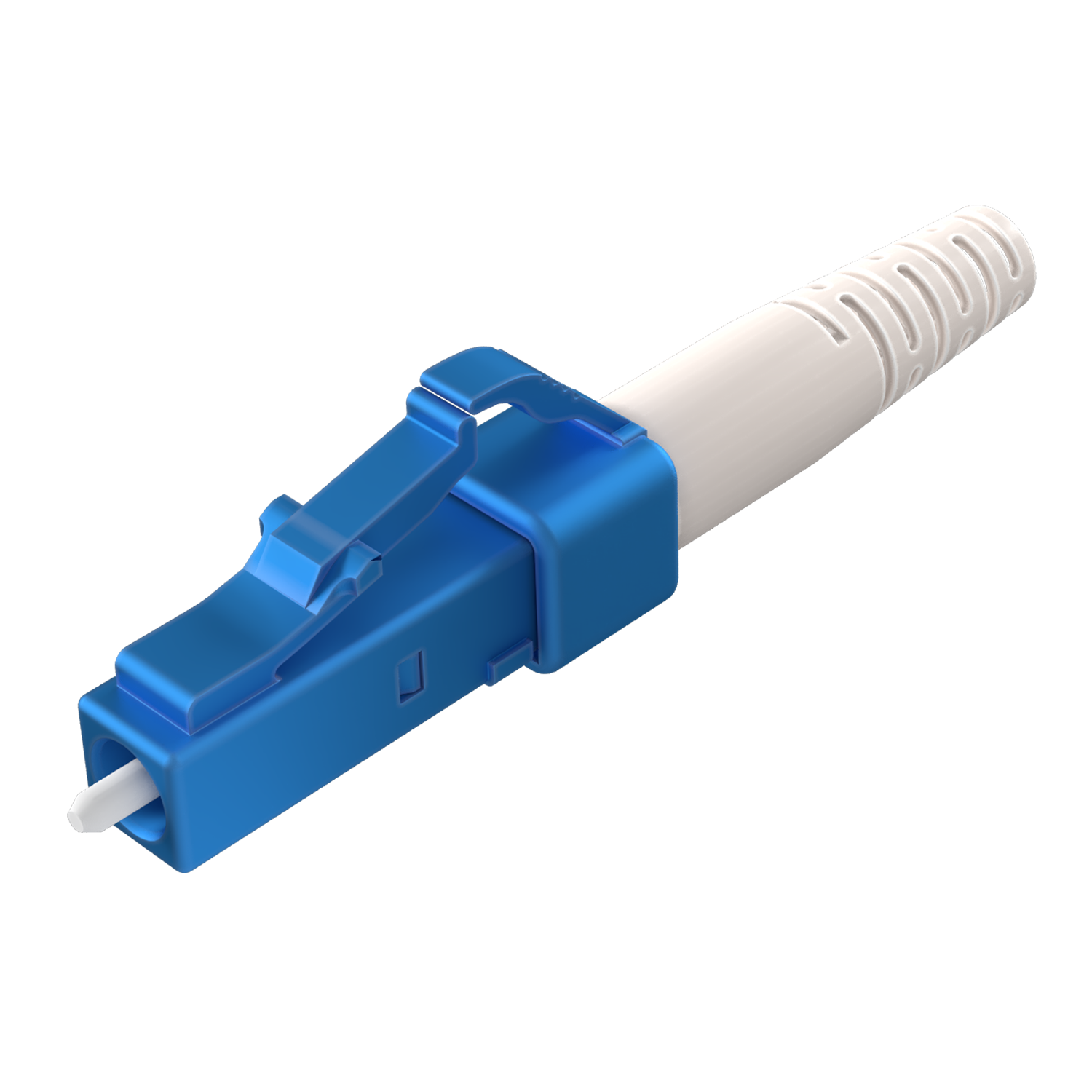

LC Unibody Connector

Request for Quote

SANWA offers a full range of LC Unibody Connectors, including single-mode, multi-mode, and APC type for 0.9mm, 2.0mm, and 3.0mm boot connectors. All are designed, developed, and manufactured based on the LC technical transfer agreement with OFS. Unlike other single-fiber optical connector solutions, SANWA’s LC connectors enable the most compact packaging and are fully compliant with TIA/EIA and IEC standards.

Characteristics

  • IEC61754-20, TIA/EIA, GR-326-CORE compliant
  • RoHS and REACH compliant
  • UL94V-0 flammability grade
  • Unique one-piece design
  • Low Insertion Loss: 6 direction tuning feature to improve random mating IL
  • Anti-snag latchs for a jumper
  • Available for 0.9mm, 2.0mm, 3.0mm, simplex and duplex
  • Angled boots available for 45-degree, 90-degree, and flexible boot

LC Series Catalogue

Additional information

Fiber Count

Simplex, Duplex
Ferrule ID

SM 125μm, SM 125μm Low Loss, SM 125.5μm, SM 126μm, MM 127μm
Housing Color

Blue, Green, Beige
Cable size

900μm, 2.0mm, 3.0mm
Boot Color

Blue, Black, Beige, White
