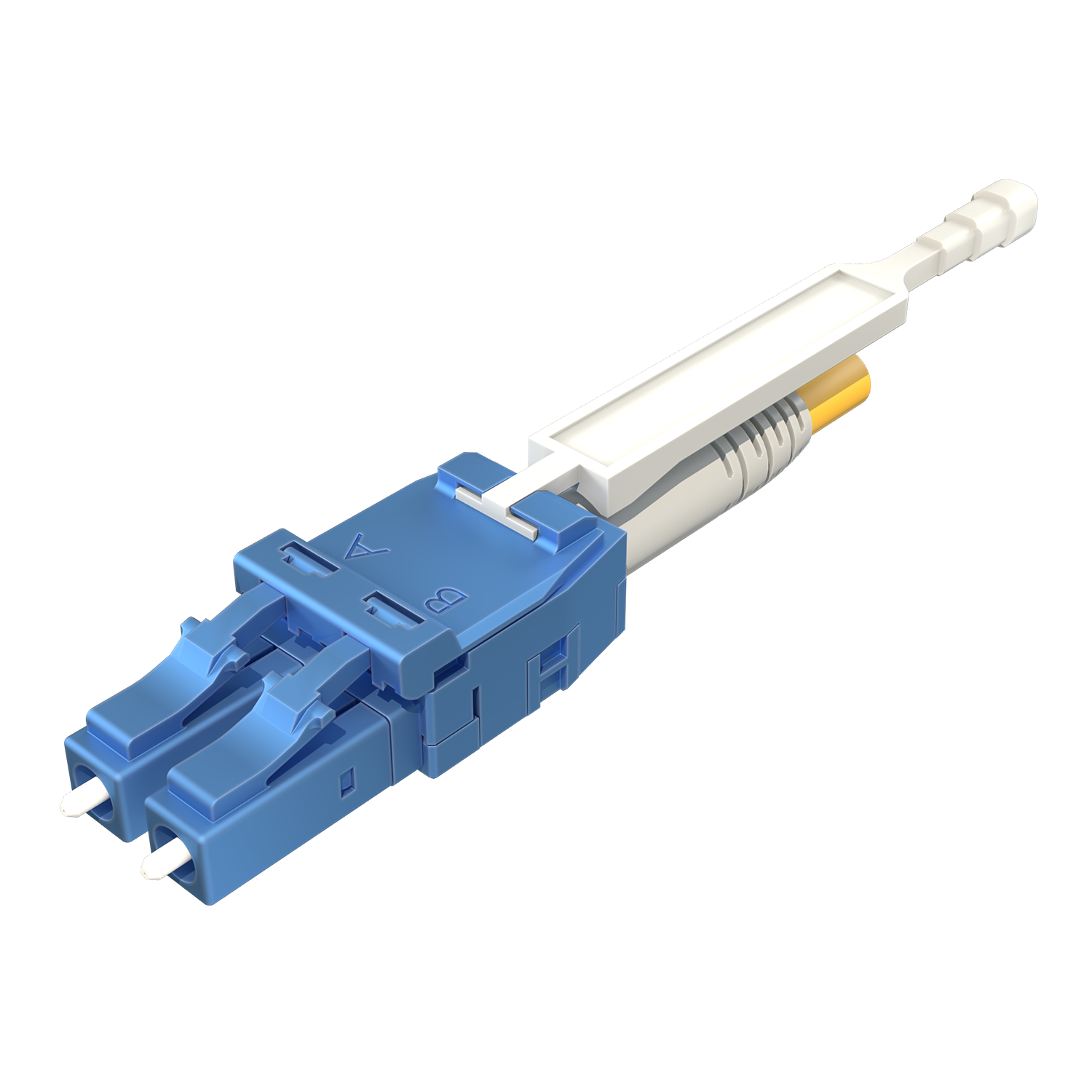

LC Push-Pull Uniboot Connector
The SANWA LC Pro-Slide Push-Pull Uniboot Connector is the easiest in the industry to disengage from an LC adapter, high-density mounted panel. By moving the sliding mechanism backward, the push-pull uniboot depresses the latch, facilitating ultra-smooth and easy removal and no need to leave room at the top and bottom of adapters to push down the connector latch. These features enable the highest density panel possible and allow a smaller panel size.
Characteristics
- IEC61754-20, TIA/EIA, GR-326-CORE compliant
- RoHS and REACH compliant
- UL94V-0 flammability grade
- The sliding mechanism allows for ultra-smooth, easy removal
- Enables highest density panel/smallest panel size possible
- Choose from 2.0mm/3.0mm, as well as short-length boot versions
- SM/MM/APC optional
Additional information
| Ferrule ID | SM 125.5μm, MM 127μm |
|---|---|
| Housing Color | Blue, Green, Aqua, Heather Violet, Lime Green |
| Boot | 2.0mm, 3.0mm |
| Boot Color | white |
| Tab | No Tab, 50mm |
