LC-M Connector
The design of SANWA’s LC-M Series Connector features a metal back body for greater strength/crimp capacity, easily adaptable SX/DX clips, and an optimized short boot, all at pricing comparable to standard LC connectors. The connector’s small size of just 32 mm overall is achieved with a combination of a die-cast metal back body and a short UL V-0-rated optimized boot.

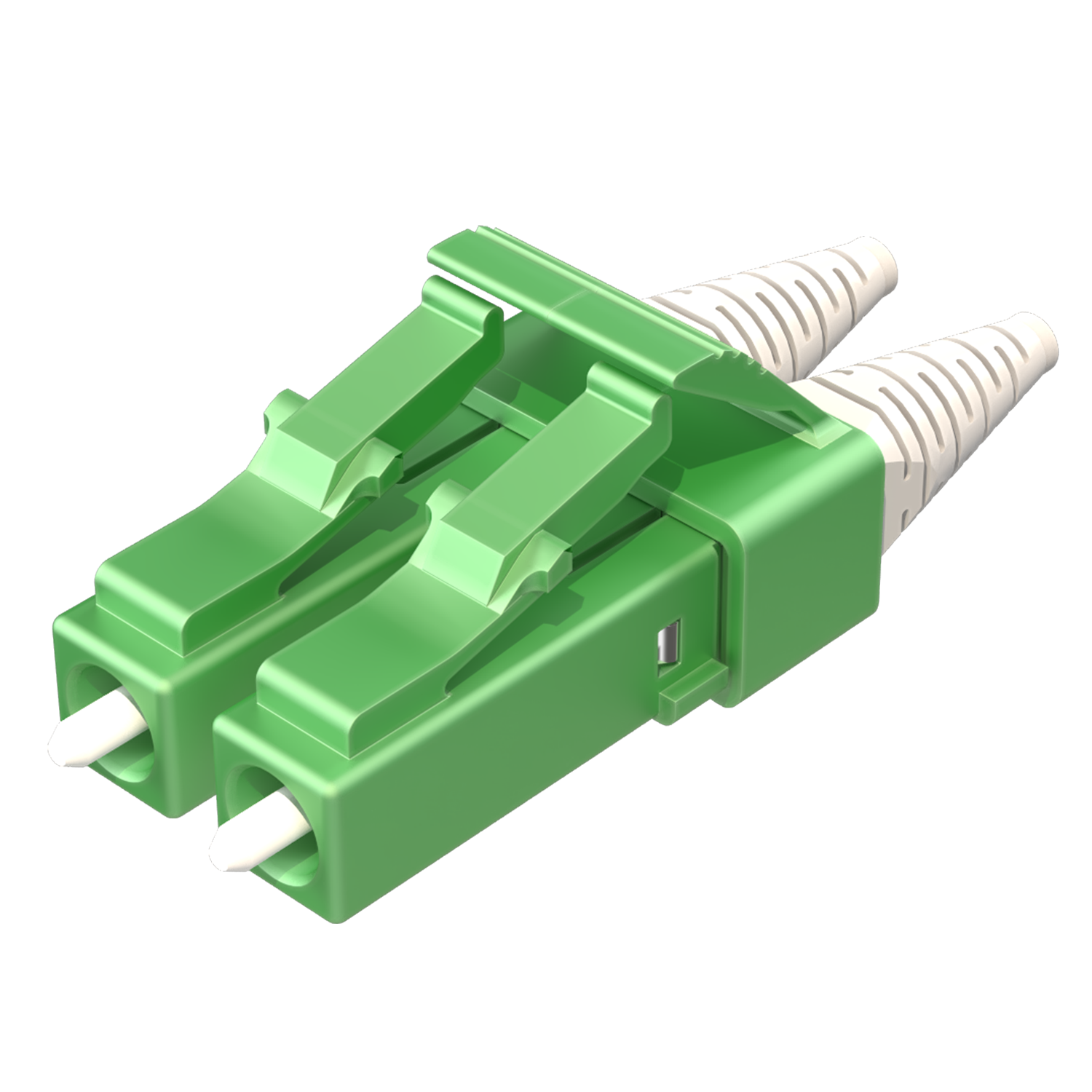

Adaptable Simplex (SX) and Duplex (DX) clips can be easily applied to the LC-M common connector bodies, allowing for reduced inventory costs over fixed SX or DX versions of standard LC connectors. The LC-M Series Connector’s patented design is compatible with all standard LC interfaces and available in multi-mode, single-mode, and APC applications in either simplex or duplex configurations accommodating 900um, 2.0 mm, and 3.0 mm cordage.
Characteristics
- Short overall length (32mm including short boot).
- Metal back body for greater strength/crimp.
- Easily adaptable SX/DX clips.
- Comparable price to LC multipiece version, with many of the features of the higher priced unibody type.
Additional information
| Connector Type | Elite LC-M, Elite LC-M APC, Pre-Assembled, Un-Assembled, APC Pre-Assembled, APC Un-Assembled |
|---|---|
| Fiber Count | Simplex, Duplex |
| Ferrule ID | SM 125µm, SM 125µm Low Loss, SM 125.5µm, SM 126µm, MM 127µm, No Ferrule Opt. |
| Housing Color | Blue, Green, Beige |
| Cable size | 900µm, 1.2mm, 2.0mm, 3.0mm |
| Boot Color | Blue, Black, Green, Beige, White |
