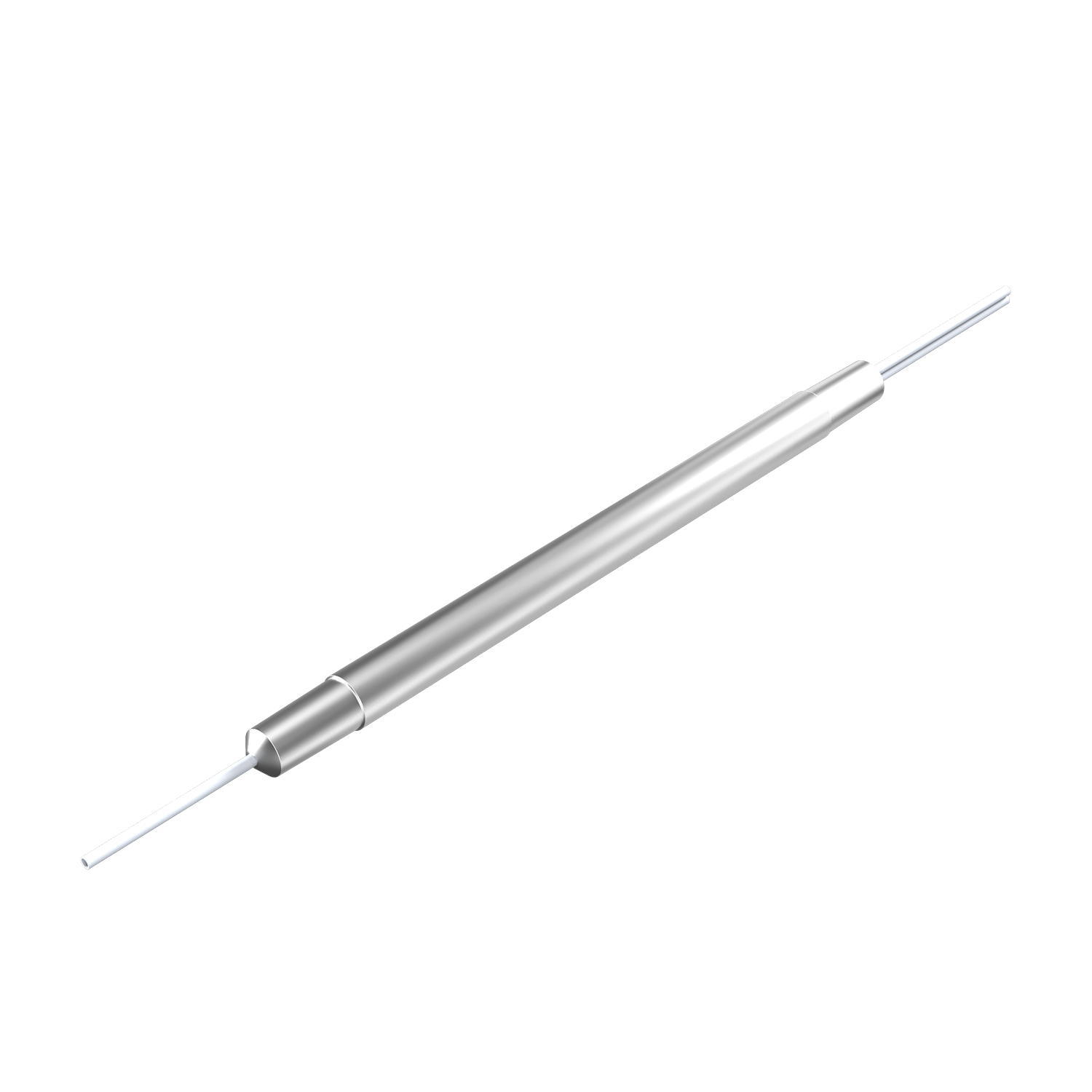

Fused Biconic WDM
The SANWA FBWDM Series is available in a wide variety of configurations, tap ratios, wavelength ranges, housing, and connector options and can, therefore, be readily specified in a wide variety of applications, enabling rapid design cycles and new project builds. These products are particularly well suited for harsh environments and also meet or exceed Telcorida GR-1209-CORE and GR-1221-CORE reliability requirements.
Fused Biconic WDM devices are available in various configurations to suit different applications. They have low insertion loss, high isolation, and low polarization-dependent loss. They are designed to operate in harsh environments and meet Telcordia reliability standards. The devices are available in different wavelength ranges and 1×2 and 2×2 port configurations. They come in different package types and have various fiber jacket and connector options.
Additional information
| Number of Ports | 1×2, 2×2 |
|---|---|
| Wavelength | 1060/1310nm, 1310/1490nm, 1310/1550nm, 1550/1620nm, 1480/1550nm, 980/1060nm, 980/1310nm, 980/1550nm, Specify |
| Package | 3x54mm, 3x64mm, 3x60mm, 3x40mm, 3x45mm, 10x20x90mm, 80x100x10mm, Specify |
| Fiber Jacket | 250µm Bare Fiber, 900µm Loose Tube, 900µm Tight Buffer, 2.0mm Loose Tube, 3.0mm Loose Tube, Specify |
| Connector Type | None, SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, Specify |
| Fiber Length | 1m (Standard), 1.5m, Specify |
