Showing all 11 resultsSorted by latest
-
SANWA’s MMC adapter is designed to provide secure and precise alignment for Very Small Form Factor (VSFF) multi-fiber connections in high-density optical environments. Engineered for low insertion loss and stable mechanical performance, it ensures accurate mating of MMC connectors while maximizing panel space efficiency. Its compact design enables simplified structure and reliable operation in controlled…
-
The SANWA MMC Dust Shutter Adapter is the industry’s first VSFF (Very Small Form Factor) with built-in IP5X-rated dust shutters, ensuring superior protection against dust intrusion. It matches the width of the standard MMC adapter. Each of the four ports is equipped with an independent, movable shutter. This unique design ensures that dustproof performance is maintained even…
-
The SANWA MDC Dust Shutter Adapter is the industry’s first VSFF (Very Small Form Factor) with built-in IP5X-rated dust shutters, ensuring superior protection against dust intrusion. It matches the width of the standard MDC 3port adapter, allowing for seamless integration into existing SC footprint panels. Each of the three ports is equipped with an independent, movable shutter….
-
The SANWA MDC connector offers 3x the fiber cabling density compared to LC connectors, achieving up to 432 fibers per 1RU for maximum space efficiency. Its push-pull boot design allows for effortless insertion and extraction, while the simple polarity reversal structure ensures easy adjustments during installation. Manufactured in SANWA’s own factory with UPC or APC polishing options, it guarantees superior quality and performance. KEY FEATURE US Conec…
-
SANWA’s MDC Jr. connector marks a significant advancement in fiber optic technology. Contrary to other MDC Jr. models that necessitate a specialized extraction tool for removal, SANWA’s innovative design permits tool-free disconnection. It minimizes the consumption of valuable back-of-panel space and brings all the functionality and testability of the connector while simplifying maintenance and upgrades, consequently reducing…
-
The SANWA MT Ferrules are available in standard and high-grade single-mode and multi-mode models. Currently, they are available in 12 and 24-fiber type versions. Characteristics IEC61754-7, TIA/EIA, GR-1435-CORE compliant RoHS and REACH compliant UL94V-0 flammability grade MPO Series_Brochure MPO Series Catalogue
-

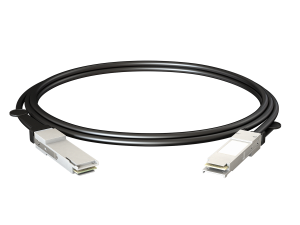

KEY FEATURES Support 4×106.25G PAM4 QSFP112 MSA IEEE 802.3ck Temperature Range: 0°C – 70°C Max. Power Consumption:<1.0W each end 3.3V Power Supply Made in Thailand Cable: PVC Black RoHS Compliance APPLICATIONS Switches, Servers and Storage Devices Data Center Networks High Performance Computing 400G QSFP-DD:QSFP112 ACC Brochure
-
KEY FEATURES Support 400G QSFP-DD to 400G QSFP-DD Support 8×53.125G PAM4 IEEE 802.3cd QSFP-DD/ QSFP56 MSA Temperature Range: 0°C – 70°C Max. Power Consumption:<1.5W each end 3.3V Power Supply Made in Thailand RoHS Compliance APPLICATIONS Switches, Servers and Storage Devices Data Center Networks High Performance Computing 400G QSFP-DD:QSFP112 ACC Brochure
-
KEY FEATURES High-performance 8×112 Gb/s PAM4 DSP retimer solution Support 800G QSFP-DD breakout to 2x400G QSFP112 IEEE 802.3ck QSFP-DD MSA Temperature Range: 0°C – 70°C Max. Power Consumption: 12W (800G), 6.5W(400G) 3.3V Power Supply Made in Thiland RoHS Compliance APPLICATIONS Switches, Servers and Storage Devices Data Center Networks High Performance Computing 800G OSFP:QSFP-DD AEC Brochure
-
KEY FEATURES High-performance 8×112 Gb/s PAM4 DSP retimer solution Support 800G OSFP to 800G OSFP Support 800G OSFP breakout to 2x400G QSFP112 IEEE 802.3ck OSFP MSA Temperature Range: 0°C – 70°C Max. Power Consumption: 12W (800G), 6.5W(400G) 3.3V Power Supply Made in Thailand RoHS Compliance APPLICATIONS Switches, Servers and Storage Devices Data Center Networks High…
-
KEY FEATURES Compatible with 800G Ethernet (IEEE 802.3ck) Supports aggregate data rates of 800Gbps(PAM4) Optimized construction to minimize insertion loss and crosstalk Pull-to-release slide latch design Straight and break out assembly configurations available 30AWG through 26AWG cable, uses 16 pairs of cables for overall flexibility Temperature Range: 0°C – 70°C 3.3V Power Supply Made in…
