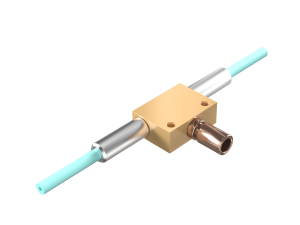

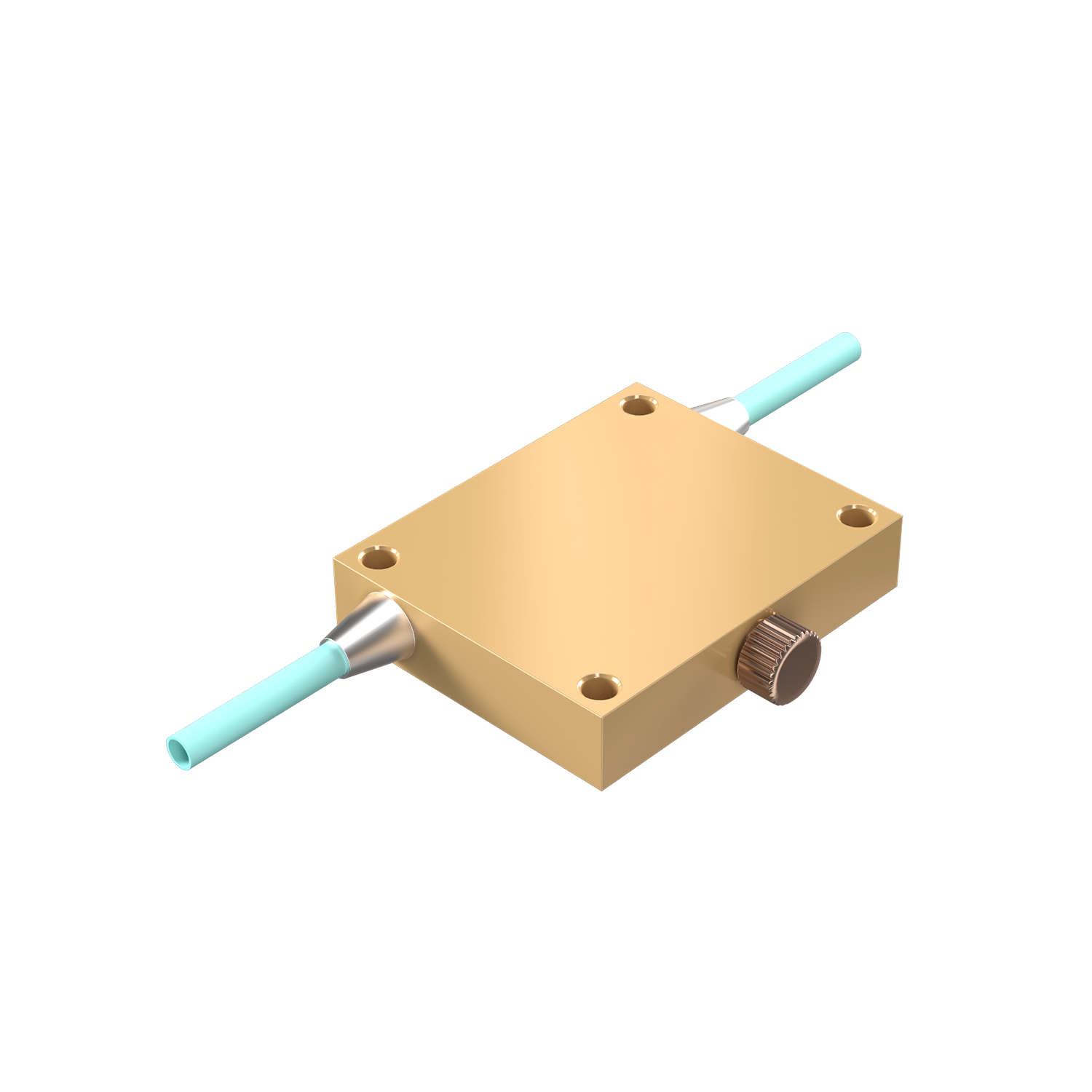

Variable Attenuators
SANWA offers Advanced Variable Optical Attenuator (VOA) devices for use in optical systems for in-line power control, transmitter power equalization, and R&D purposes. It features high resolution, low insertion loss, and low polarization and wavelength-dependent loss. Customized designs are also available according to specialized feature applications. The attenuator has a variable attenuation range of 30dB at wavelengths of 1310nm and 1550nm. It operates between -15 to 60 degrees Celsius and stores between -40 to 70 degrees Celsius.
Characteristics
- High-resolution control of attenuation
- Low insertion loss
- Low Polarization Dependent Loss (PDL)
- Low Wavelength Dependent Loss (WDL)
- Customizable design according to application needs
- Variable attenuation range of 30dB at 1310nm and 1550nm wavelengths
- Operational temperature range of -15 to 60 degrees Celsius
- Storage temperature range of -40 to 70 degrees Celsius
Applications
- In-line power control in optical systems
- Transmitter power equalization
- Research and development (R&D) purposes
Additional information
| Type | Sx Jumper |
|---|---|
| Mode | SM 08µm, MM 62.5µm, MM 50µm, MM 50µm 10g, SM Bend Ins., Specify |
| Grade | Premium, Standard |
| Connector Side 1&2 | SC/UPC, SC/APC, FC/UPC, FC/APC, LC UPC Lit, ST, LC/APC, Specify |
| Cable type | 2mm, 3mm, 900µm Tight Buffer |
| Cable Color | Blue, Orange, Aqua, Yellow, White, Red, Gray, Black, No-Jacket |
| Fiber Length | 0.51.0m, Specify |
