MPO HD Connectors

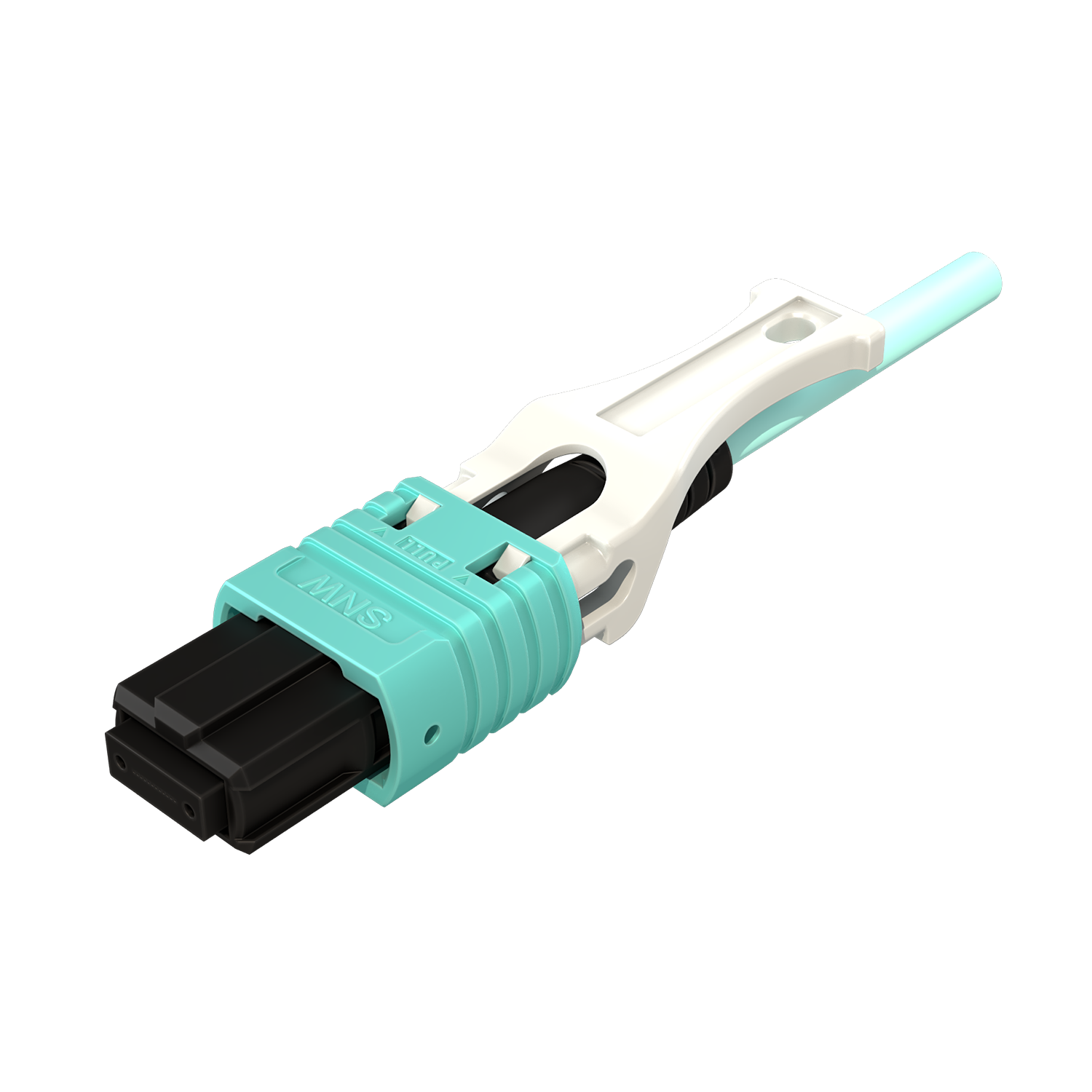

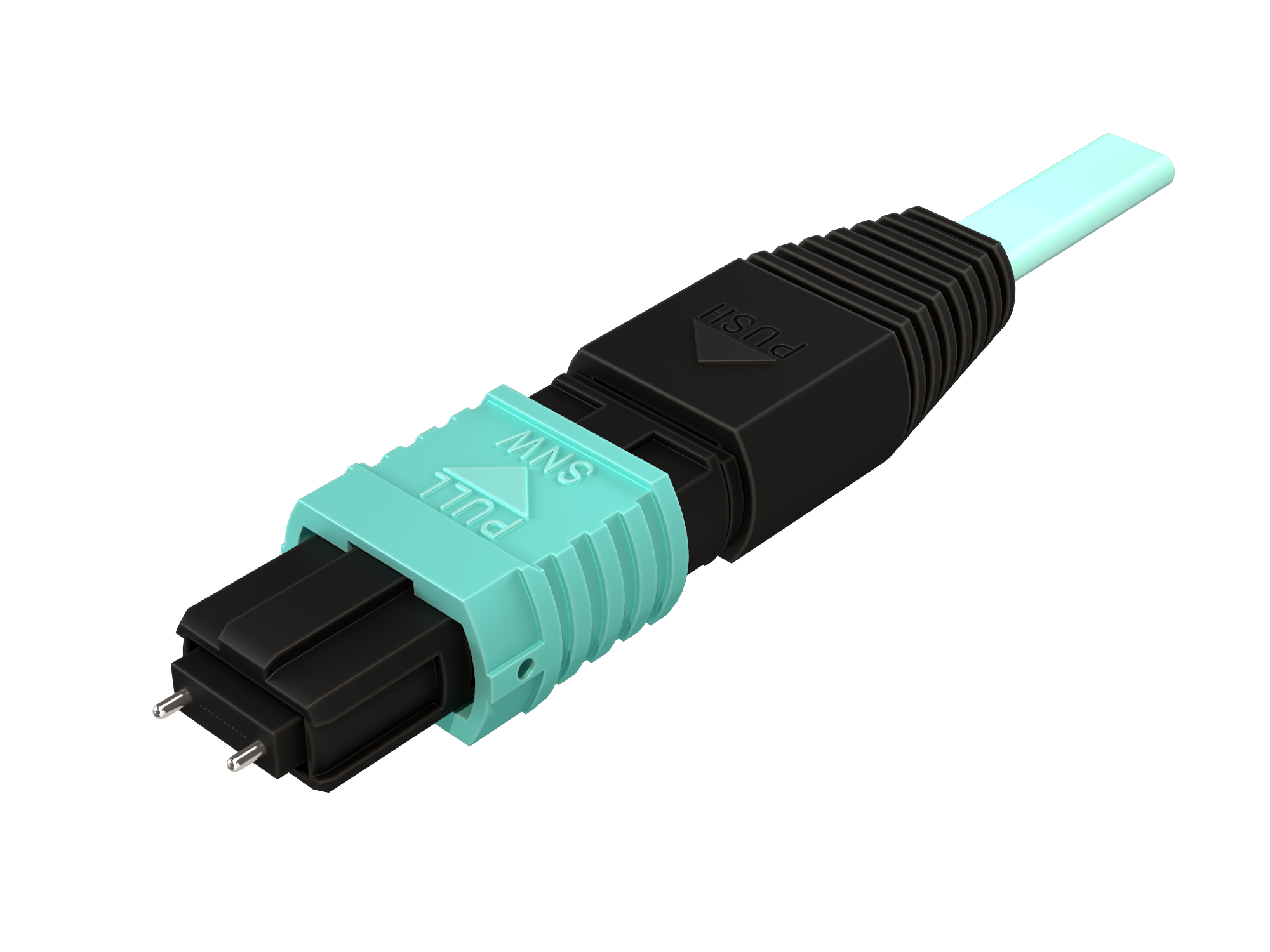

The MPO HD (High Density) Connector from SANWA is the shortest connector assembly in the market. This allows more space between the rack and the cabinet doors while allowing for easier extraction of the connector from highly populated application.
Characteristics
- IEC61754-7, TIA/EIA, GR-1435-CORE compliant
- RoHS and REACH compliant
- UL94V-0 flammability grade
- Push-pull tab types available
Additional information
| Connector Type | Male (Guide Pin), Females (No Guide Pin) |
|---|---|
| Mode & Grade | MM Standard, MM High Grade |
| Fiber Count | 12 Fiber |
| Housing Color | Green, Aqua, Yellow, Heather Violet |
| Boot | 3mm Round |
| Tab | With Tab, No Tab |
